Automatic wire cutting and bending machine for max 6sqmm single core cable

Intro:

This wire cut and bend machine can work for single core cable with max 6sqmm. It can cut, strip and bend. The bending shape can be programmable. One machine can bend various shapes.

• Power supply: 220V/110V
• Opeartion language: English and Chinese
• Can program and save , easy to read programs

Suitable:

Machine works for cable with single copper, the wire should be within 6sqmm.

Specication:

Feature:

1. Power switch: main power switch;

2. Start button: equipment running button;

3. Finish button: When the equipment is running, it will stop after completing a single wire;

4. 7-inch touch screen: function setting;

5. Pneumatic button of entry wheel: Rotate the wheel down, roller will raise. Rotate the wheel up, the roller will go down.

6. Inlet wheel: conveying wire;

7. Conductor and conductor holder: Conductor tube for wire passing and post-stripping function

8. Tool holder: cutting and stripping functions;

9. Bending clamp: post-stripping moving clamp and bending bracket;

10. Bending rod: the bending angle can be adjusted arbitrarily in the section number interface;

11. Straightener: straighten the wire;

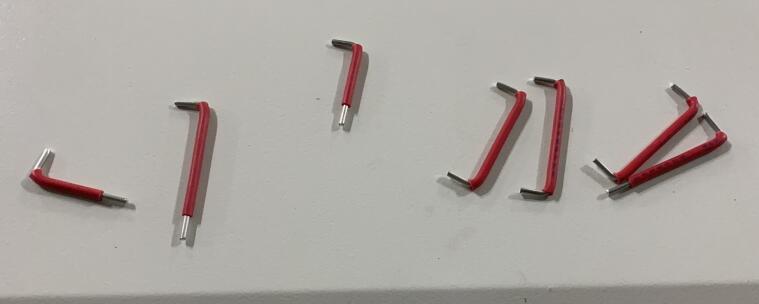

Bending samples
