RS-10PF Programmable Jumper Wire Cutting And Bending Machine

Intro:

RS-10PF is a programmable wire cut and bend machine. It can work for jumper wires, or single core wire with insulation.

Suitable:

Machine can work for wires within 10sqmm. The cutting and bending size can be adjustable.

• For standard machine, size L1>=10mm, H1/H2>=10mm. Adjustable.
• We can customize machine for smaller L and H1/H2. L1>=6mm, H1/H2>=3.5mm

Parameters:

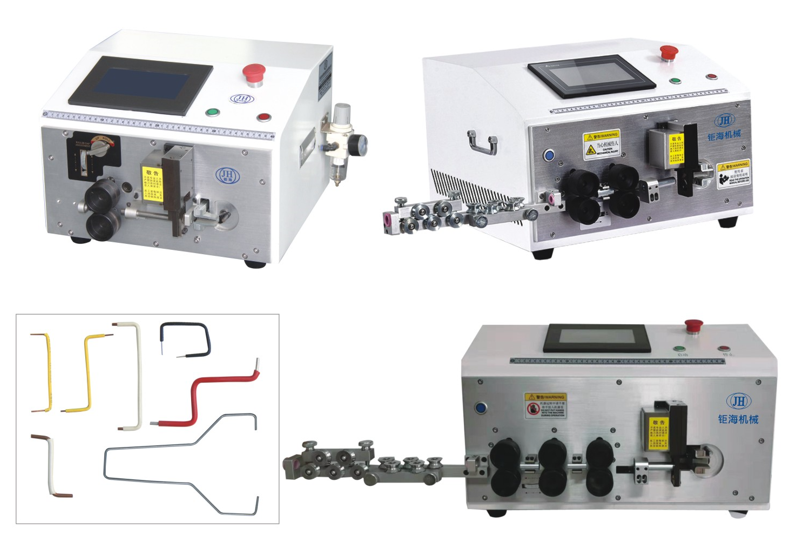

Machine structure:

1. Power Switch

2. Start Button: To start machine

3. Complete button:During operation, after completing cutting wires, stop.

4.7'' LCD display: For setting function.

5. Pneumatic push button of the entry wheel: the pusher is pushed down by the button, and the pusher is pressed down by the button;

6.Feeding wheel: conveying wire;

7. Catheters and catheter holders: Catheters for passing wires and post-peeling concession;

8. Tool post: cutting and stripping functions;

9. Bending clamp: strip the moving clamp and bending bracket after stripping;

10. Bending rod: the bending angle can be adjusted arbitrarily in the number of sections interface;

11, straightener: straighten the wire;

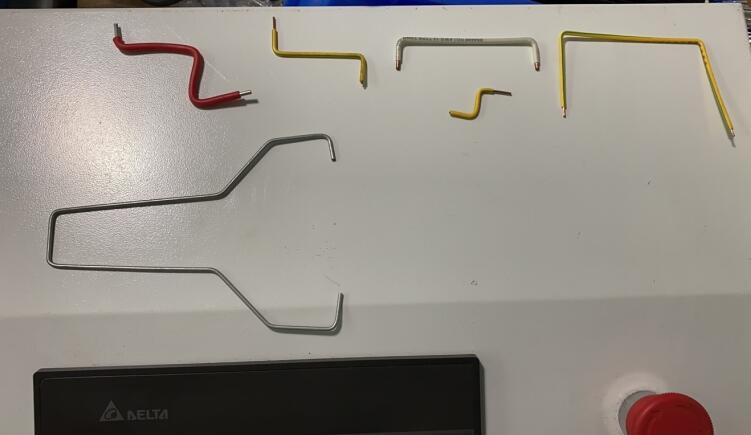

Cut, strip and bend samples
