RS-6T/8T/10T/12T Semi-automatic Wire Terminal Press Crimp Machine

6T 8T 10T 12T different terminal press crimp terminal machine electrical wire crimp ends machine


Specification


Wire crimping machine specification

ModelRS-6TRS-8TRS-10TRS-12T
Power supplyAC 220V 50/60HZAC 220V 50/60HZAC 220V 50/60HZAC 220V 50/60HZ
Motor power2.2KW3.0KW3.KW(High configuration reducer))3.0KW
Press capacity6T8T10T12T
Stroke30MM30MM30MM30MM

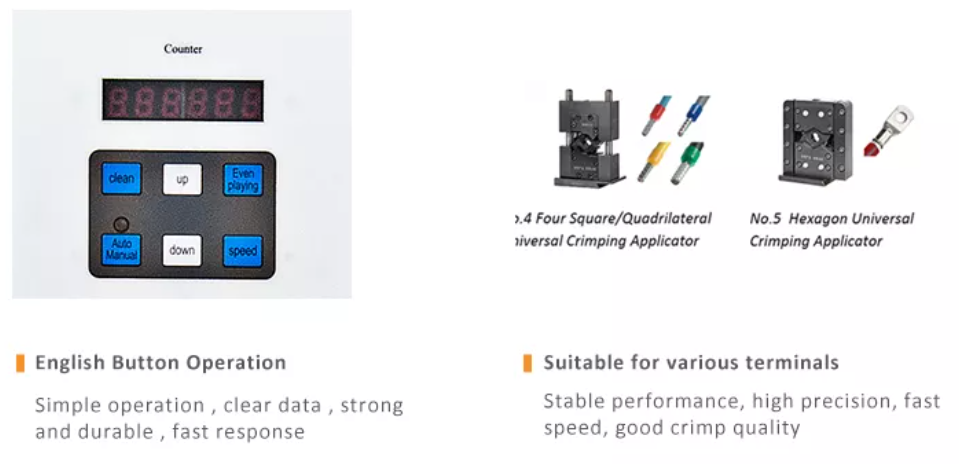

Avaialble moldsVertical, Horizontal or loose single grain terminals
Operation modeSingle or continuous pressing
Size31x27x71CM36x32x82CM38x32x83CM30x38x82CM
Weight130KG140KG150KG160KG



Quality RS-6T/8T/10T/12T Semi-automatic Wire Terminal Press Crimp Machine for sale
