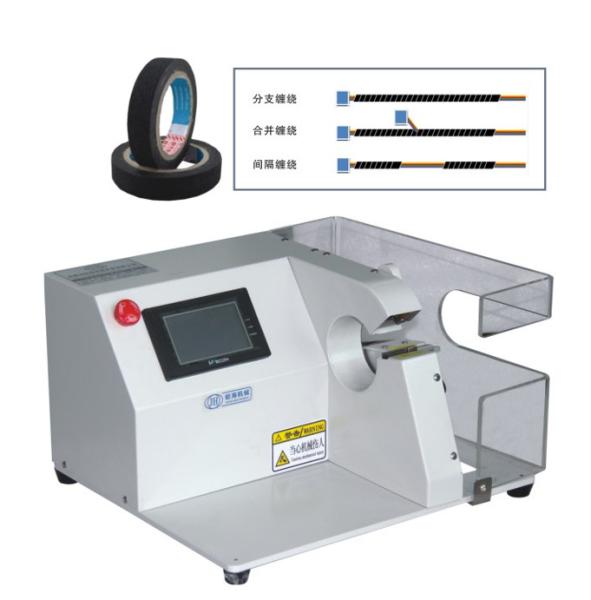

Automatic Wire Harness Taping Machine

Intro:

This machine is suitable for tape wrapping automobile wire harness, electronic wire and other wire harnesses.

Stick the tape head manually, foot switch to start.

Can point wrapping, full wrapping. Manually move the wires.

Parameters:

Wrapping types:

Full Wrapping:

Select "Full Wrapping", step on the foot switch tape to start working slowly, hold the lifting wheel to close the switch under the premise that the foot pedal is not released, and the machine enters a high state, and release the machine to stop working. (When the thread cover is left for a short time, start to pull the thread through the wheel with your hand, and touch the lift switch with the back of your hand. The wheel begins to close. If the thread is over the wheel, the working state can be modified in the parameter screen)

Point Wrapping:

To select "Point Wrapping", you need to enter the number of windings to be wound in the setting of the number of windings on the upstream point, and hold down the foot switch to start working (in this case, the foot pedal does not have to be kept on). It stops working after the number of windings.

Multi-segment wrapping:

Select "multi-segment wrapping" first, and then click Multi-Segment Settings. There are 50 segments that can be set. Set according to the length of the wire branch. You need to set several segments. The rest do not need to be set. After setting, you need to enter the number of segments in the upper right corner of the screen. Stepping on the pedal, the machine will stop automatically after the first period of operation, and the machine will stop automatically. You need to step on the pedal to enter the second period of operation, repeat the above actions.

RKENS TECHNOLOGY CO., LTD was founded in 2007. RKENS is the fast growing manufacturer of various equipment, such as SMD counter, Automatic Tube/Tape/Wire Cutting machine, Axial lead forming machine, Radial lead cutting forming machine, wire cutting stripping machine, wire crimping machine, Label machines, PCB depaneling Machines,etc. Our continuing expansion of manufacturing facilities worldwide provides immediate availability of our products and technical support to meet the needs of our customers. Today, RKENS is an international supplier of high quality equipment. We pledge to continue to provide customers with the good quality and service in the 21st century.

It has the professional research team, sales and production team. Also it is equipped with advanced production and testing equipment system. With the philosophy that qulity is the soul of an enterprise, we pay much attention to product quality, and strictly manage every process, like raw material purchasing , parts prodution, installation, QC, sales and after-sales service, etc. Because of all our effort and good quality, our products have got good comments from customers around the wolrd, such as customers from USA, Europe and Asia, etc.

In the following years,we will devote ourselves to better product and better service to serve our old and new customers. Also we will be open to all our customers and appreciate all feedbacks and advice.

Technical Support & Services

RKENS product management group provides technical assistance on the products being used.
You can contact us by phone, fax, E-mail or this website. We guarantee you our prompt attention.

Our Main Industries:

Automated Wire Harness Processing Machines: Fully automatic terminal machine series, fully automatic wire stripping machine series, fully automatic shell inserting machine series, fully automatic tinning machine series, new energy vehicle wiring harness processing equipment series and other fully automatic wiring harness processing equipment.

Automated Radia/Axial Lead Cutting &Forming Machines: Capacitor lead cutting and forming machine, resistor lead cutting and forming machine, LED lead cutting and forming machine, transistor pin forming machine, jumper forming machine, vibration feeder bowl (customizable), automatic screw packaging machine, automatic vertical packaging machine, automatic non-standard equipment (customizable)

SMT related machines:  Fully automatic glue dispensing machine/glue filling machine, fully automatic screw locking machine, fully automatic soldering machine, fully automatic tube/strip cutting machine, automatic PCB depenaling machine, SMD components counter, etc.
