RS-0540 Insulated Tubular Terminals Ferrule Pressing And Crimping Machine

Insulated Tubular Terminals Pressing Machine


Intro:

This crimping machine is suitable for tubular type terminals pressing. It can auto sensing, stripping, inserting terminals, pressing, and feeding.

It is a semi-automatic type press machine, manually putting wires.


Suitable:

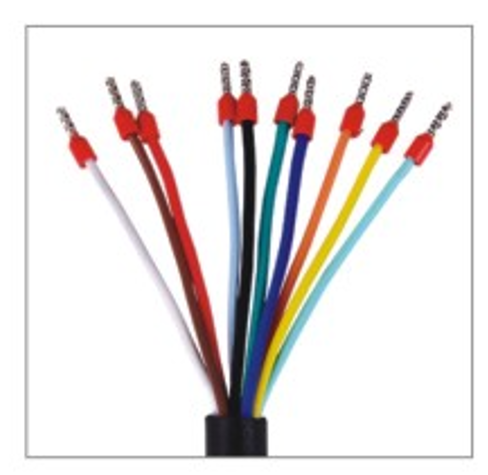

Machine is for tubular ferrules with 0.5-4mm2 (Length should be within 12mm)


Parameters:


ModelRS-0525 Insulated Tubular Terminals Pressing Machine
Specification

0.5mm -4mm2 insulated ferrules

Detect deviceterminal supply detection,device lack
Drive ModeDriving mode motor/imported ball screw control method
Control Modeouch screen and programmable controller,MOONS drive
Wire Clamping deviceWire clamping device motor drive, clamping force program control
Crimping Devicemotor drive, crimping force program control
Storage capacity100 kinds of cable crimping data
Pneumatic devicePneumatic device SMC solenoid valve, SMC cylinder
Power supply220V, 50HZ/60HZ
Gas source0.6~0.8Mpa (please use clean and dry air source)
SizeL450mm * W350MM * H425mm
WeightAbout 68KG

Features:

1. Enclosed design of the whole machine, safe and reliable operation;

2. Touch screen operation, electric adjustment of stripping depth and length, setting parameters save;

3. Automatic terminal supply, electronic four-side crimping (square), no need to replace crimping die

4 , Quick and automatic trigger, fast and convenient;

5. Semi-automatic operation, manual pay-off;

6. Automatic induction, peeling, terminal threading, crimping terminal, automatic feeding.
