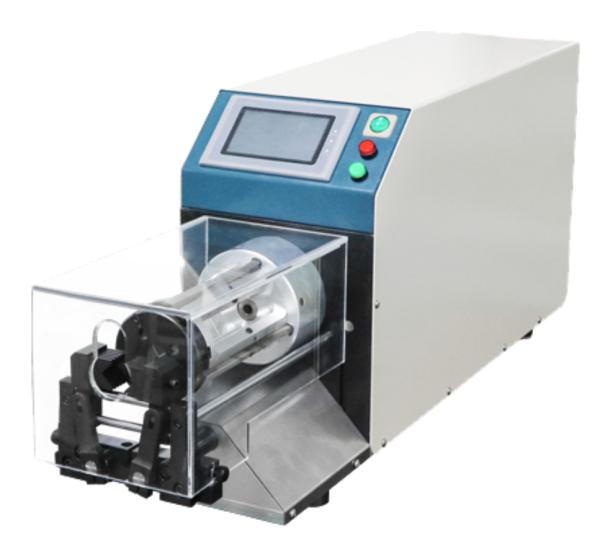

RS-2515 Semi-Automatic Coaxial Cable Stripping Machine

Intro:

RS-2515 coaxial cable stripper machine has touch screen dispay for setting strip length and other parameters.

Applicable wires: coaxial cable, corrugated tube cable, new energy cable

Specification:

Model: RS-2515

Display mode touch screen

Applicable wires: coaxial cables, corrugated tube cables, new energy cables

Display interface: Chinese and English LCD 95mm*50mm

Working power supply: AC220V/110V50/60HZ

Power: 630W

Stripping length: 0-150mm

Overall dimensions: 920*220*400mm

Peeling length setting unit: 0.01mm

Weight: 53kg

Cutting wire diameter range: 3-24mm

Driving method: motor ball screw drive

Cutting depth setting unit: 0.01mm

Tool material·Imported mold steel

Number of blades: 4 rotary knives

Maximum number of peeling layers: 9 layers

Tool material: imported tungsten steel Working environment - 5-45 degrees dry and vibration-free work surface

Storage capacity: 99 kinds of processing parameter data

Production efficiency: 300-800Pcs/h (depending on the material)
