    Customized Floor Type Glue Filling Dispensing Machine

    Ask Lasest Price
    Brand Name : RKENS
    Model Number : YS-D1200
    Payment Terms : T/T, Western Union
    Supply Ability : 300 SETS per month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

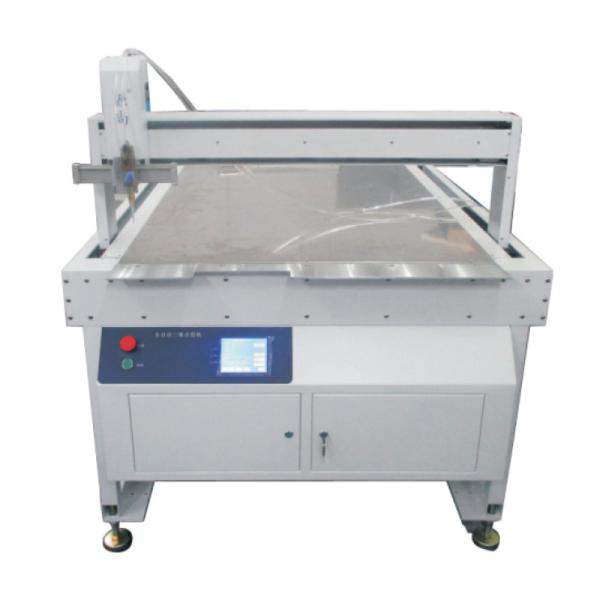

    Customized Floor Type Glue Filling Dispensing Machine

    Customized Automatic Glue Dispenser Machine, Robot Glue Dispensing System

    Intro:

    The floor-standing dispenser is suitable for large and heavy products such as doors and windows.
    The work surface can be customized according to the product size, and the dispensing can be completed in one time to improve production efficiency.

    The automatic glue dispensing machine can be programmable by English LCD display. It can quickly draw dots,lines, circles on internal and external surface,vertical plane,gap and spherical surface,etc.

    It has Excellent teaching function. Support array spread,graphic browse and rotate,3D oval and common pictures insert,group edit,etc.


    Suitable:


    • We can customize machine according to customers' need.
    • Working area can customized as per produts, such as 300x300mm, 400x400mm,etc
    • Can set dispensing volume and thickness, dispensing speed,dispensing time and stopping time


    Specification:


    Model numberYS-D1200
    Working area(X/Y/Z area)1200*1200. Can be customized.
    Speed5-8/SEC
    Resolution0.01mm
    Repeatability+/-0.01mm
    Display5.7' LCD display
    Control systemprofessional 3 axis motor control system
    Power220V/50HZ 250W
    Import modeteaching or file import,dxf,PLT form.etc.
    Working enviromentTemperature:5-40 degree. Humidity:20-90%RH
    Size/
    Weight100KG

    Operating principle:


    Compress the glue into the feed pipe connected to Piston Chamber by conpressing air into the glue botton(injector). When the piston is in the upstroke, the piston chamber is filled with glue.And When the piston is pushed down, the glue is extruded from the needle nozzle. The dispensing glue amount is decided by the distance of piston downstroke. The gule dispensing amount can be controlled by manual adjustment or by setting the program.


    Features:


    1,Stand-alone operation can work without connecting to computer, easy to install and operate.

    2,PC or machine touch screen edition,precise positioning and dispensing control.

    3,Can accelerate and decelerate in trapezoid and S.

    4,Online teaching of dispensing and motor pattern.Can easily complete matrix copy in different path, modify offset,set calibration point and transmit program among several machines,etc.

    5,Can restore multipul independent operational procedures.

    6,Simple and easy programming, operation and maintaenance.

    7,Can be customized at customer's request for different application.
