Automatic Axial Lead Forming Machine , U Shape Resistor And Diode Lead Bending Machine

Intro:

RS-907U is used to cut and form axial components lead to U shape. The forming tool is customized. It can form U, F or UK and FK shape according to customers' need. This machine is for taped components only, however we can also provide feeder bowl for loose components.

• Available Forming Type: U shape, F shape, U-K, F-K
• Lead diameter: 0.5-0.8MM or 1.0-1.3MM lead. Two size range can not use same machine.
• U shape forming Size is below.

Suitable:

• Resistor And Diode Axial Lead Forming Machine is for taped axial components only. Optional feeder bowl can work for loose components
• We can make forming tool as per customers' need.
• Available lead diameter: 0.5-0.8MM or 1.0-1.3MM lead . Two lead diameter range can not share same machine.

Specification:

Features:

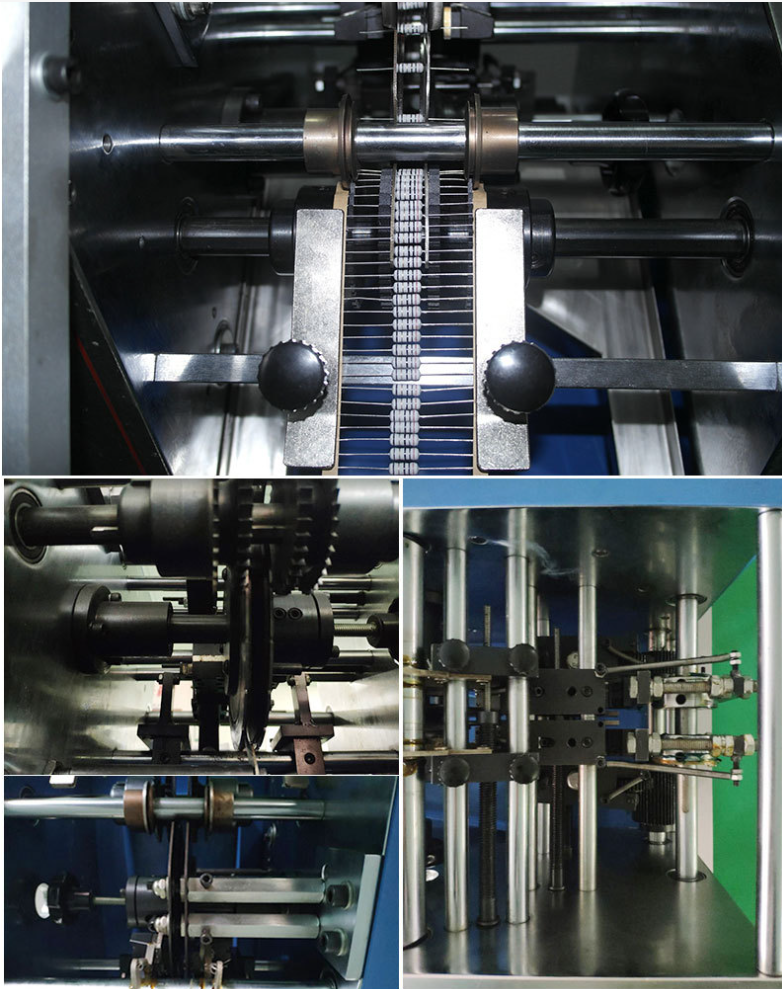

1. Automatic feeding, automatic cutting and automatic forming. Optional vibration feeder bowl is available.

2. From fixed ring to mutual workpiece to turntable; 3 points set a straight line so that the lead wire is not stressed.

3. The turntable is customized according to the component so that the component does not deviate on the turntable and the mutual workpiece.

4. Cutting lead: dynamic and static cutting knife cutting lead; mold thickness positioning lead; mold thickness positioning.

5. Through mold molding, the molding effect is more stable.

Forming size and Forming samples

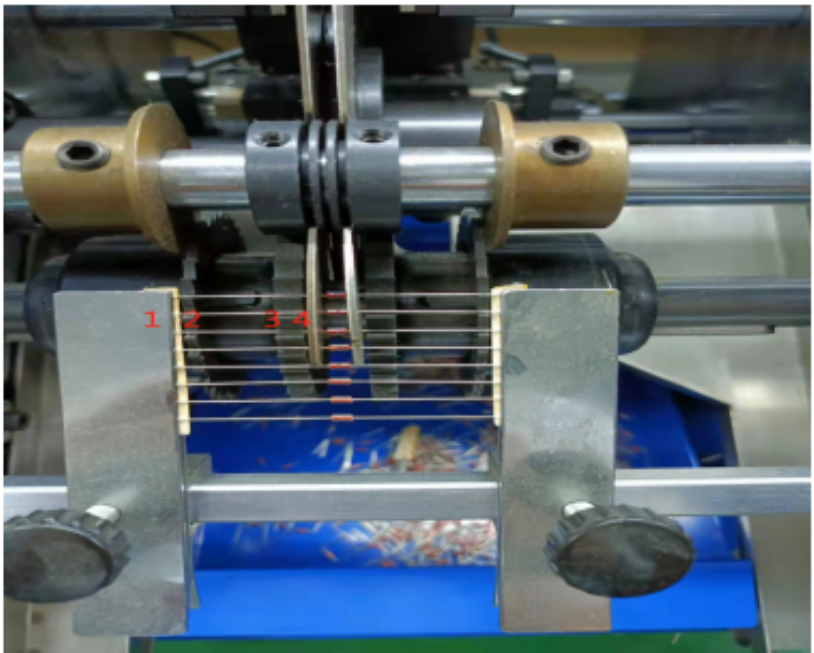

1. Feeding.
Pressing, gear positioning, feeding track. 4 points make the material in the same straight line; the lead wire is not stressed

2: From the fixed ring to the caregiver to the turntable; three points are set in a straight line so that the lead wire is not stressed; as shown below

Machine video:
