Automatic F type Resistor And Diode Axial Lead Forming Machine

Intro:

RS-907F is used to cut and form resistor/diode lead to F shape. The forming tool is customized according to customer's needs. For F shape, the forming size is adsjutable. Operator just needs to put taped and reel components on the machine holder, start it, machine will work automatically. It can save much time.

• Forming Type: U shape, F shape, U-K, F-K
• Lead diameter: 0.5-0.8MM or 1.0-1.3MM lead. Two size range can not use same machine.

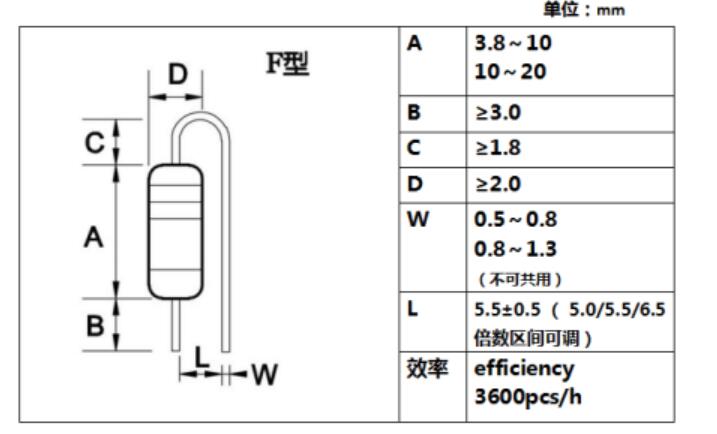

• Below is forming size range for F shape

Suitable:

• Resistor And Diode Axial Lead Forming Machine is for taped axial components only. However we have feeder bowl for loose components for option.
• We can make forming tool as per customers' need.
• Available lead diameter: 0.5-0.8MM or 1.0-1.3MM lead . However two lead range can not share same machine.

Specification:

Features:

1. Automatic feeding, automatic cutting and automatic forming. Optional vibration feeder bowl is available.

2. From fixed ring to mutual workpiece to turntable; 3 points set a straight line so that the lead wire is not stressed.

3. The turntable is customized according to the component so that the component does not deviate on the turntable and the mutual workpiece.

4. Cutting lead: dynamic and static cutting knife cutting lead; mold thickness positioning lead; mold thickness positioning.

5. Through mold molding, the molding effect is more stable.

Forming size and forming samples

Machine detail

Machine video:
